| 柴油機水泵Diesel pump |

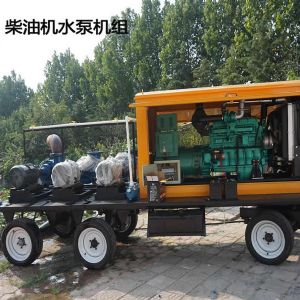

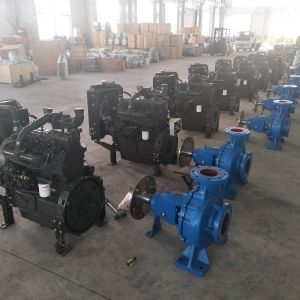

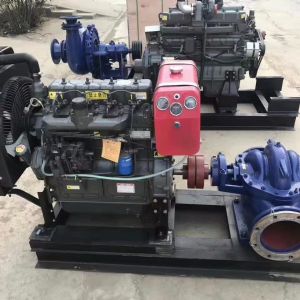

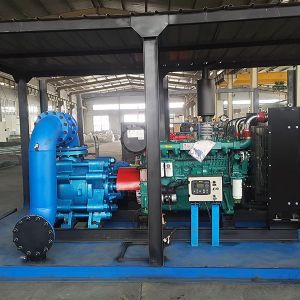

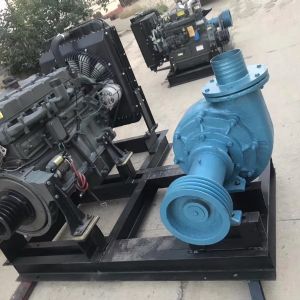

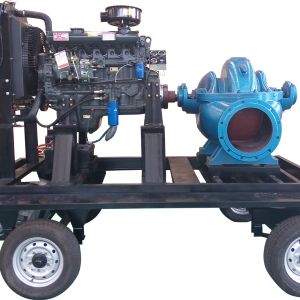

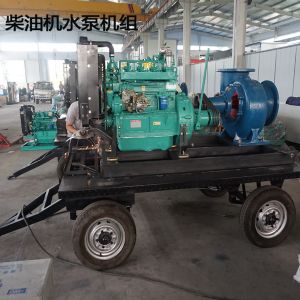

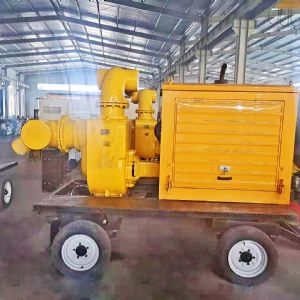

柴油機水泵泛指以柴油機為動力，泵組通過彈性聯軸器由柴油機驅動，具有先進合理的結構，效率高，汽蝕性能好，振動小，噪聲低，運行平穩、可靠和裝拆方便等優點。
Diesel engine water pump to denote powered by diesel engines, pumps by elastic coupling driven by diesel engine, with advanced and reasonable structure, high efficiency, good cavitation performance, little vibration, low noise, smooth operation, reliable and convenient installation. |
柴油機動力型驅動泵（或消防泵組）由臥式離心泵與柴油機、電器儀表等設備，安全緊密地安裝在一公共底架上，通過控制線和信號線與電控箱相連。
Type power diesel engine driven pump (or fire pump group) by horizontal centrifugal pump and diesel engine, electrical instruments, such as equipment, installed in a public security closely chassis, through the line of control and signal lines connected to the electric cabinet. |
| 用途use |
1、用于消防備用主泵，稱為XBC柴油機消防水泵；
Used for fire fighting standby main pump, called XBC diesel fire pump; |
2、用于工業應急用途，如鍋爐給水，高溫給水等；
Used for industrial emergency use, such as boiler feed water, high temperature feed water, etc. |
3、用于無電源地區農業灌溉，稱ZCSB自吸無堵塞柴油機自吸泵。
ZCSB is used for agricultural irrigation in areas without power supply. |
| 操作要求Operation requirements |
在準備首次起動柴油機水泵時，檢查所有設備的安裝情況，按下列要求進行啟動：
When preparing to start the diesel engine water pump for the first time, check the installation of all equipment and start the engine according to the following requirements: |
從加油口向柴油機和水泵懸架內注入機油，并用油尺檢查油位，符合要求高度；
Inject the engine oil into the diesel engine and pump suspension from the oil inlet and check the oil level with the oil gauge to meet the required height. |
從膨脹水箱向柴油機內加入冷卻水，水位到2/3膨脹水箱高為宜；
Add cooling water from the expansion tank to the diesel engine, and it is advisable to increase the water level to 2/3 of the expansion tank height. |
在油箱內裝入柴油，壓動排氣手壓泵，讓柴油通過過濾器進入機內；
Install diesel fuel in the fuel tank and press the exhaust manual pressure pump to let the diesel oil enter the machine through the filter. |
連接水泵進出口管道及閘閥，關閉出水管路的閘閥，出口壓力表和真空壓力表；
Connect the inlet and outlet pipes and gate valves of the water pump, close the gate valves of the outlet pipes, the outlet pressure gauges and the vacuum pressure gauges; |
向水泵及進水管灌水或真空引水，并排空內部空氣；
Water is pumped or vacuumed into water pumps and inlet pipes, and the air inside is emptied. |
打開外循環冷卻水閥門；
Open the external circulating cooling water valve; |
在進口閥門全開，出水閥門關閉情況下，起動柴油機水泵，當柴油機達到正常轉速后再逐漸打開出水管路上的閥門，并調節到所需的工況。
At the inlet valve fully open, the water valve closed cases, starting diesel pumps, when the diesel engine reaches normal speed, then gradually open the valve outlet pipe road, and adjust to the desired operating mode. |
