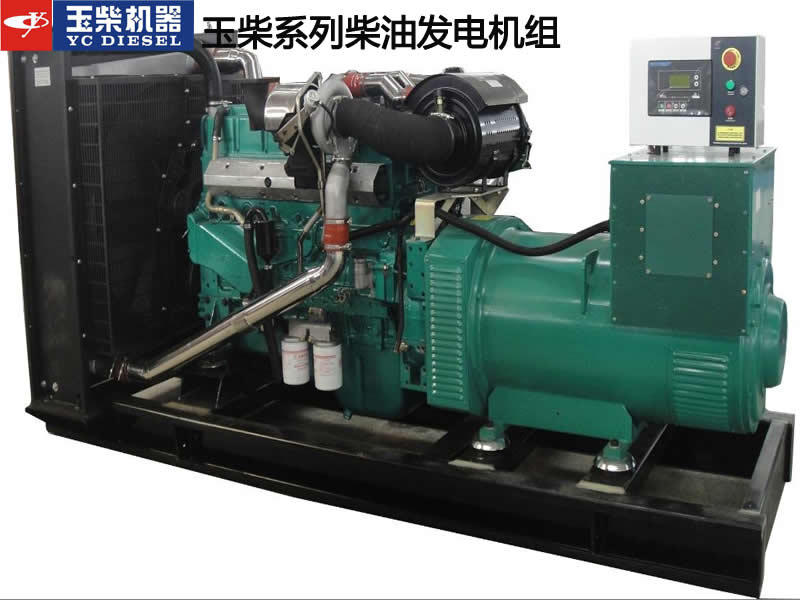

玉柴300KW柴油發電機組


廣西玉柴發動機采用德國FEV技術所開發的產品。機體、氣缸蓋采用合金鑄鐵，強化程度高，采用整體鍛鋼曲軸，滑動軸承，體積小重量輕，可靠性高，大修期大于12000小時。該機組具有結構緊湊、功率儲備大、可靠性高、調速性能好等特點。

Guangxi yuchai engine USES the German FEV technology developed products. The body and cylinder head are made of alloy cast iron, with high degree of reinforcement, with integral forging steel crankshaft, sliding bearing, small volume and light weight, high reliability, and the overhaul period is more than 12000 hours. The unit has the characteristics of compact structure, large power reserve, high reliability and good speed regulation.

機組型號	輸出功率KW	輸出功率KVA	電流 A	柴油機型號	缸數	缸徑*行程 mm	潤滑油容量 L	油耗 g/kw.g	機組外形尺寸 L×W×H	機組重量 kg
FM30GF	30	37.5	54	YC4FA40Z-D20	4	96*103	8	215	15007001100	500
FM40GF	40	50	72	YC4FA55Z-D20	4	96*103	8	215	15007001100	550
FM50GF	50	62.5	90	YC4FA75L-D20	4	96*103	12	215	18008001300	750
FM40GF	40	50	72	YC4D60-D21	4	108*115	12	215	17008001300	600
FM50GF	50	62.5	90	YC4D85Z-D20	4	108*115	12	215	18008001300	800
FM60GF	60	75	108	YC4D90Z-D21	4	108*115	15	215	18008001300	850
FM70GF	70	87.5	126	YC4A100Z-D20	4	108*125	16	215	18008001300	900
FM100GF	100	125	180	YC4A140L-D20	4	108*125	16	215	21009001500	800
FM90GF	90	113	162	YC6B135Z-D20	6	108*125	16	215	21009001500	850
FM100GF	100	125	180	YC6B155L-D21	6	108*125	16	215	22009001500	950
FM120GF	120	150	216	YC6B180L-D20	6	108*132	18	215	22009001500	1000
FM140GF	140	175	252	YC6B205L-D20	6	108*125	18	215	22009001550	1200
FM150GF	150	188	270	YC6A230L-D20	6	108*132	16	195	250010001600	1400
FM160GF	160	200	288	YC6A245L-D21	6	108*132	16	195	250010001600	1500
FM220GF	220	275	396	YC6MK350L-D20	6	120*145	25	195	280011001650	2000
FM250GF	250	313	450	YC6MK420L-D20	6	123*145	25	195	300011001700	2200
FM300GF	300	375	540	YC6MJ480L-D20	6	131*145	25	195	320012001700	2600
FM350GF	350	438	630	YC6T550L-D21	6	145*165	50	195	330012001700	3000
FM400GF	400	500	720	YC6T600L-D22	6	145*165	50	195	350015001800	3500
FM450GF	450	563	810	YC6T660L-D20	6	145*165	50	195	350015001800	3600
FM500GF	500	625	900	YC6TD780L-D20	6	145*165	50	195	360016002100	4200
FM600GF	600	750	1080	YC6TD840L-D20	6	200*210	50	195	360016002100	4500
FM650GF	650	813	1170	YC6C1020L-D20	6	200*210	180	195	400015002100	5200
FM700GF	700	875	1260	YC6C1070L-D20	6	200*210	180	195	420016002100	5600
FM800GF	800	1000	1440	YC6C1220L-D20	6	200*210	180	195	460018002500	7600
FM880GF	880	1100	1584	YC6C1320L-D20	6	200*210	180	195	520021502600	8000
FM1000GF	1000	1250	1800	YC12VC1680L-D20	12	200*210	180	195	540021502600	8500
FM1100GF	1100	1375	1980	YC12VC1680L-D20	12	200*210	180	195	540021502600	8800
FM1200GF	1200	1500	2160	YC12VC2070L-D20	12	200*210	180	195	540021502600	9000
FM1320GF	1320	1650	2376	YC12VC2070L-D20	12	200*210	180	195	540021502600	10000
FM1500GF	1500	1875	2700	YC12VC2070L-D20	12	200*210	180	195	560023002600	12000
FM1600GF	1600	2000	2880	YC12VC2510L-D20	12	200*210	180	195	560023002600	12500

1.以上技術參數轉速為1500RPM，頻率50HZ，額定電壓400/230V，功率因數0.8，接線方式為三相四線。 2.發電機可以根據客戶需求，選用上海斯坦福、上海馬拉松、無錫斯坦福等知名品牌。 3.60HZ發電機組可以根據客戶的特殊需要定制。 4.本參數表僅供參考，如有更改恕不另行通知。
標準配置 Standard equipment：發動機 diesel engine 發電機 alternator 散熱器 water cooled radiator 工業消音器、波紋管 industrial silencer and flexible exhaust hose 啟動免維護蓄電池及蓄電池電池連接線 maintenance-free lead-acid starting batteries and battery connect wires 輸出斷路器 output circuit breaker 智能控制屏 digital control panel 鋼式底架 steel base frame
可選配置 Optional equipment 低噪音靜音機箱 Low noise silent case 四輪移動拖車電站 Four-wheel mobile trailer power station 自啟動、自轉換開關柜 Self - start, self - conversion switch cabinet 自動并機控制系統 automatic parallel operation control system 電熱式水套加熱器 electrothermal water jacket heater
